Barnet® is a powdercoated aluminium safety rail system, fixed rapidly and invisibly. The system comprises: a wall mounted fixing plate, a locking ring and a handrail. All mounting screws will be hidden. It is possible to dismount and re-position the system without damaging the masonry. Barnet® h ...Read more
Type Public price Quantity
Total
Select finish:
Color
Handrail
44,17 € each
Barnet 1 rail Kit
30,68 € set
Barnet 2 rails Kit
92,31 € set
Add to cart


Product description

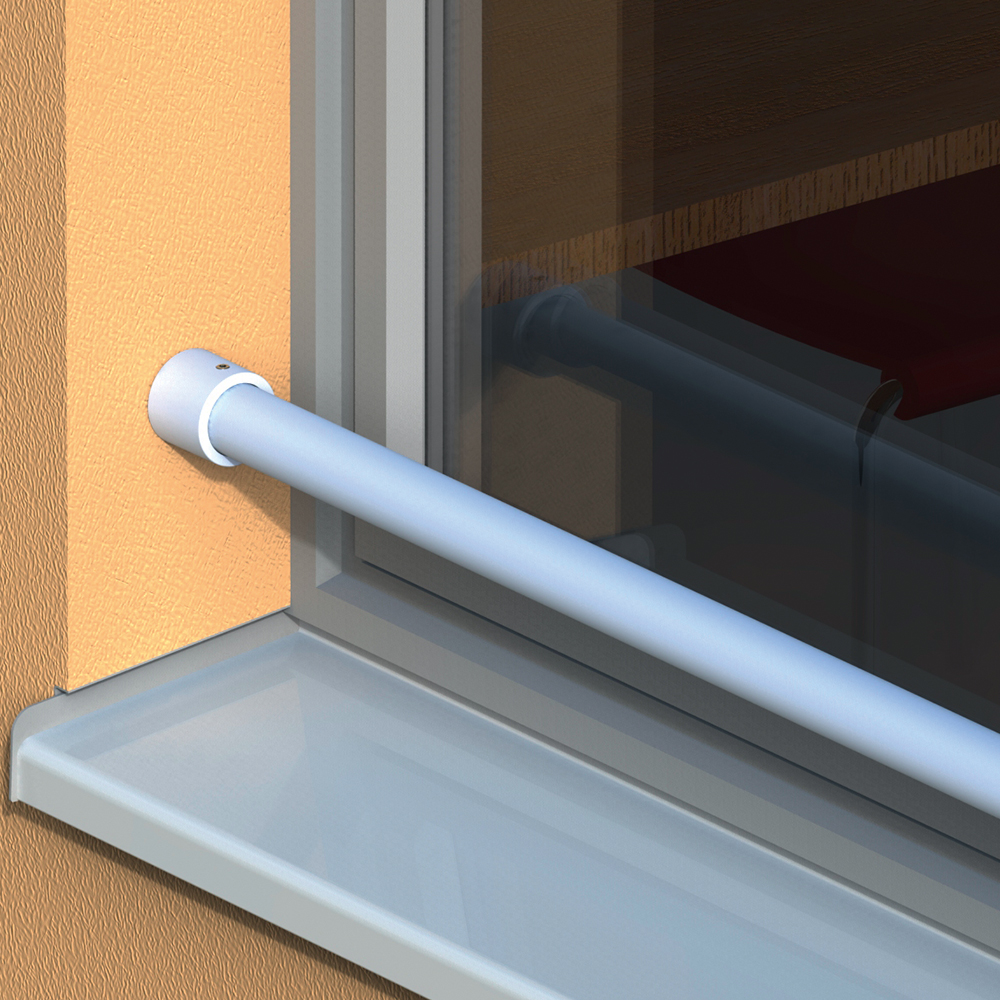

Barnet® is a powdercoated aluminium safety rail system, fixed rapidly and invisibly. The system comprises: a wall mounted fixing plate, a locking ring and a handrail. All mounting screws will be hidden. It is possible to dismount and re-position the system without damaging the masonry. Barnet® has been designed to comply with standard NF EN 1991-1-1 (Eurocode 1). The maximum length of use of the handrail is 2000 mm.

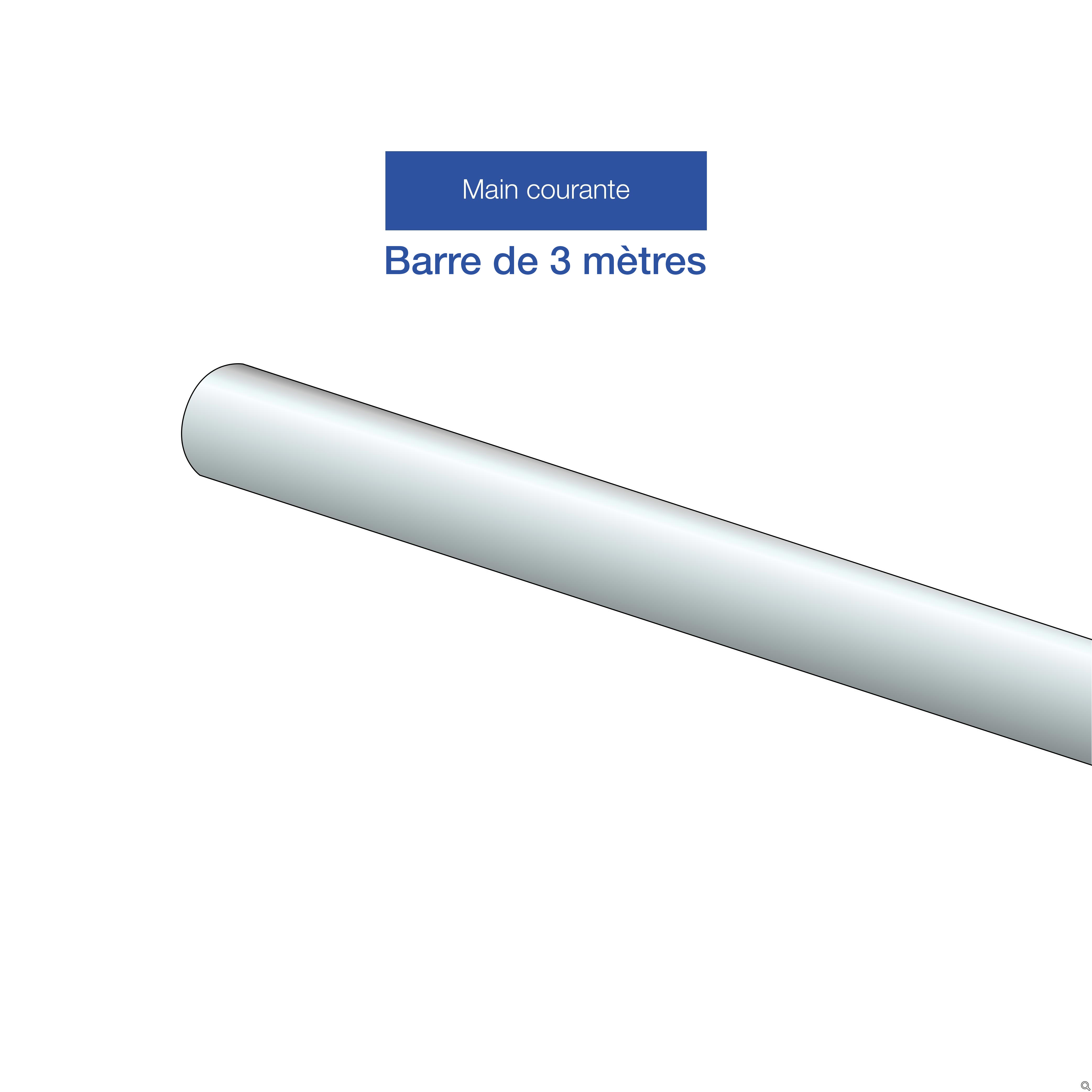

The handrail is delivered in 3 meter lengths to be cut on site.

A fixing kit must be ordered for any bar.

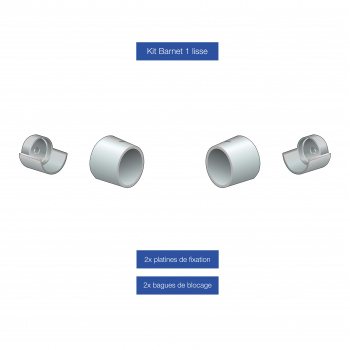

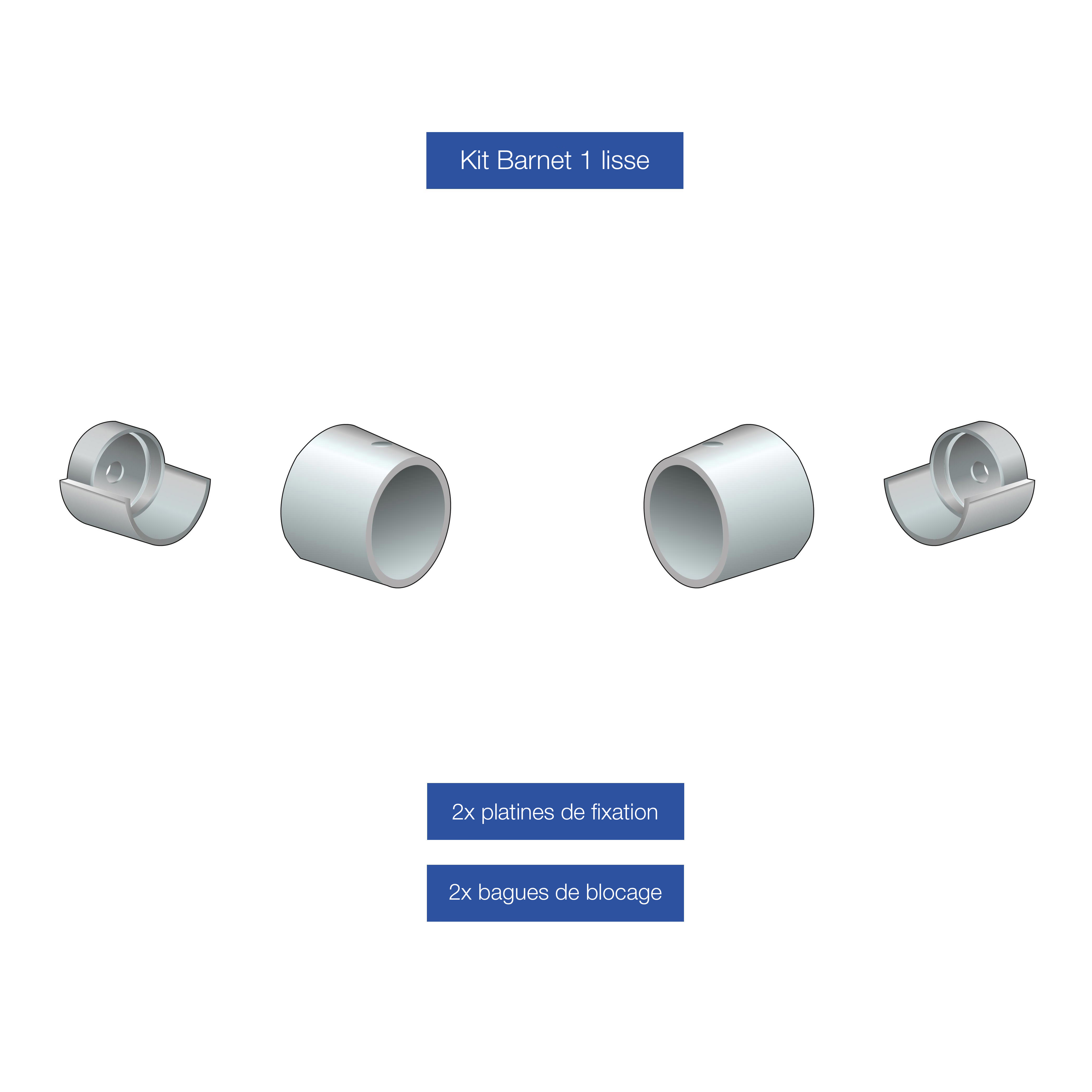

Barnet 1 rail Kit (figure 1): this kit includes all you need to fix the bar except M8 wall plugs.
Composition of the Barnet 1 rail Kit:
  • 2 Barnet wall mounted fixing plates
  • 2 Barnet locking rings
  • 2 M8x8 Hexagon socket set screws with cup point

Or

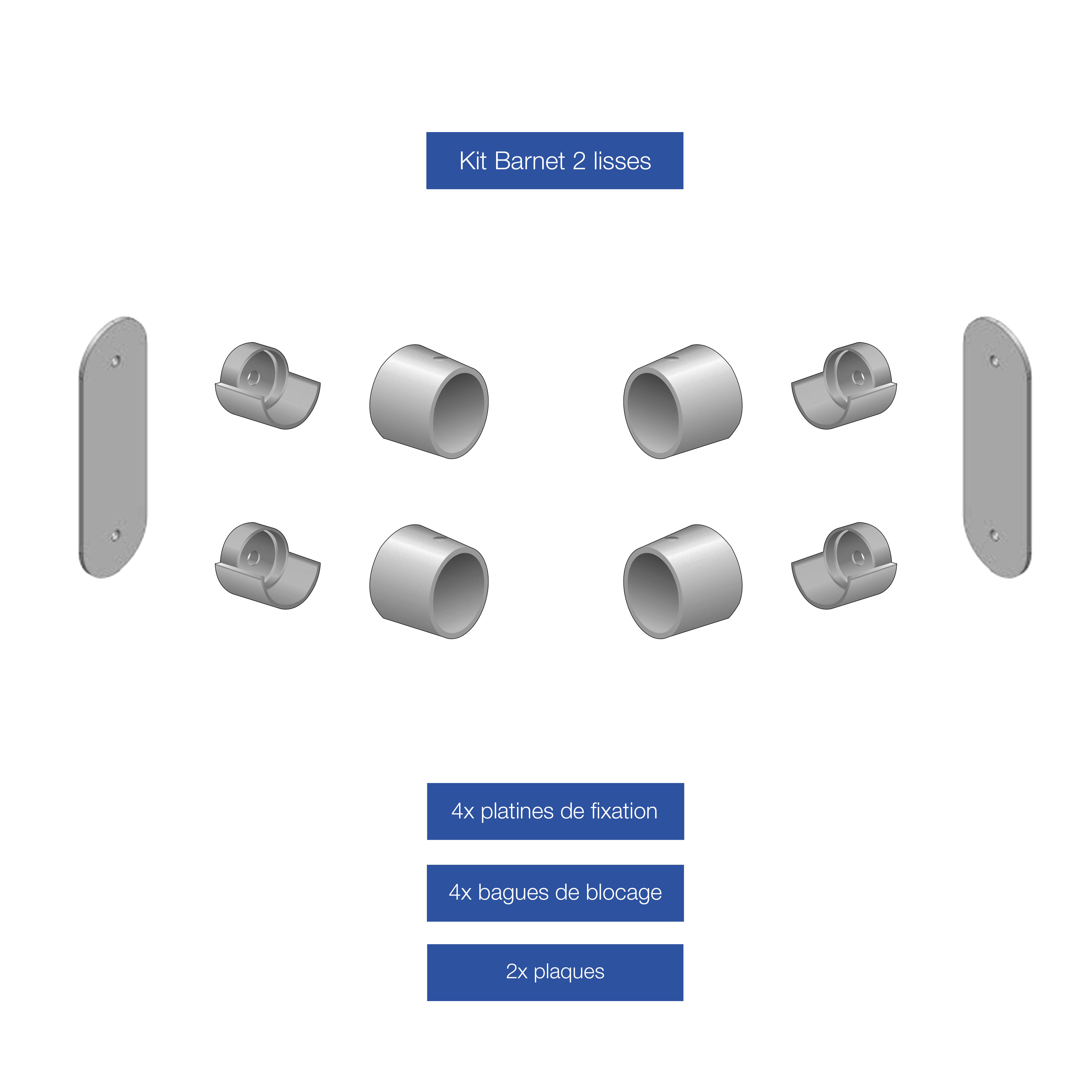

Barnet 2 rails Kit (figure 2): this kit includes all you need to fix the bar except M8 wall plugs.
Composition of the Barnet 2 rails Kit:
  • 2 plates for Barnet 2 rails
  • 4 Barnet wall mounted fixing plates
  • 4 Barnet locking rings
  • 4 M8x8 Hexagon socket set screws with cup point

Barnet is in stock and can be shipped in5 days in the following colors: RAL 7016, 9010, 9016. For any other color, a 10 days shipping delay applies.
Color chart Made in France

Technical specifications

Technical specifications

Barnet Grab bar
3-meter bar
Ø45 mm
0.69 kg/ml
Aluminium
Ring (0.2 kg), Plate (0.17 kg)
5 working days (RAL 7016, 9010, 9016) or 10 working days

Links and related products

Downloads



Implementation (FR): Cross-section (FR): Documentation (EN):
